Yüksek Hızlı Veri İletişiminde Özel Uzunluklu Kapalı Spiral Çelik Zırhlı Taktiksel Alan Fiber Optik Kablo

Marka Adı:	HX Fiber
Model Number:	HX-LXK2
Adedi:	1000 parça
fiyat:	negotiable
Paketleme Ayrıntıları:	Ahşap şaft+İhracat karton kutu

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Guangdong, Çin

Sertifika:

CE/ROHS/ISO9001

Türü:

Kapalı Alan Fiber Optik Kablo, Kapalı Alan Fiber Optik Kablo

İletken Sayısı:

Renk:

Özel Renk

Ürün Adı:

Spiral Zırhlı Fiber Kablo

Uygulama:

Telekom İletişimi

Ceket:

PVC LSZH LSOH PE HDPE

Uzunluk:

Özel Uzunluk

Anahtar Kelime:

Yüksek hız

Paket:

Ahşap Davul

Hizmet:

OEM ODM'yi Kabul Et

Liman:

Shenzhen

Yetenek temini:

Ayda 1500000 Adet / Adet

Vurgulamak:

Özel uzunluklu fiber optik kablo

Taktiksel alan fiber optik kablosu

Zırhlı fiber optik kablo

Ürün Tanımı

PRODUCT PARAMETERS
Tabulation	Single mode	Multi mode	Multi mode
Fiber core diameter	9±0.4	50±2.5	62.5±2.5
Cladding diameter	125±1	125±1	125±1
Fiber optic cable loss	0.4bd/km@1310nm	3.5bd/km@850nm	3.5bd/km@850nm
Fiber optic cable loss		0.3bd/km@1550nm	1.5bd/km@1300nm	1.5bd/km@1300nm
Outer diameter of fiber optic cable	2.9±0.1
Number of fiber cores	2Core (multi core customizable)
Fiber optic cable weight	~15
Temperature performance	-20 ℃ -+70 ℃
Bending radius	Dynamic 20x OD/Static 10x OD
Compressive strength	Long term 1000/Short term 3000
Tensile strength	Dynamic 300/Static 600
Sheath material	PVC, LSZH, PE, PU, PTEE, SGS, UL
Sheath color	Multiple colors available

PRODUCT DESCRIPTION

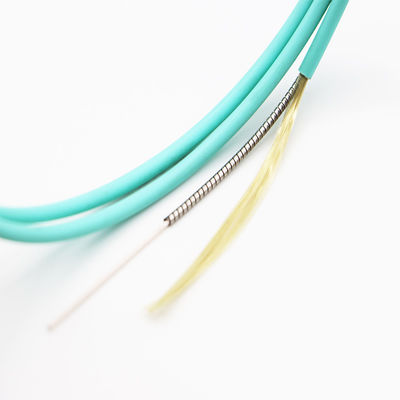

INDOOR SPIRAL ARMOURED

MULTI-MODE GIGABIT FIBER CABLE

Customization supporting

LIGHT SPEED TRANSMISSION

European Standard:Inner Dia 50um/Outer Dia 125um

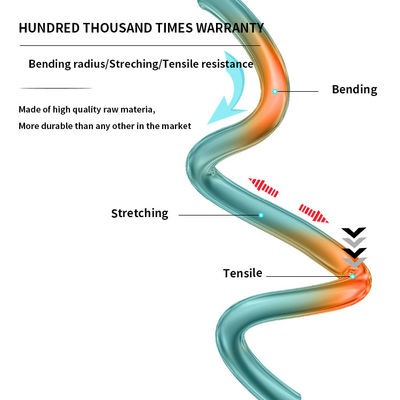

HUNDRED THOUSAND TIMES WARRANTY

Bending radius/Streching/Tensile resistance

Made of high quality raw materia, More durable than any other in the market

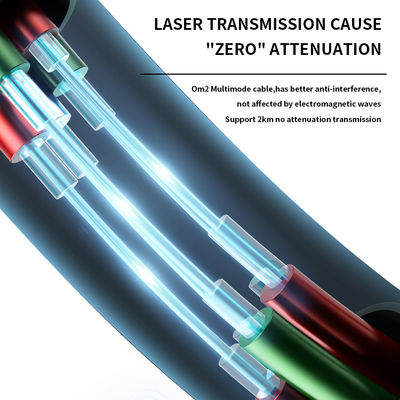

LASER TRANSMISSION CAUSE "ZERO" ATTENUATION

Om2 Multimode cable,has better anti-interference,not affected by electromagnetic waves Support 2km no attenuation transmission

ADOPTING EXCELLENT

ENVIRONMENTAL RAW MATERIAL

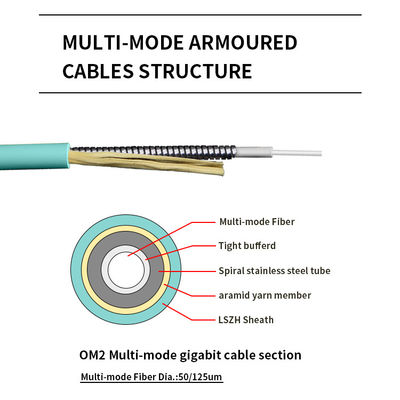

MULTI-MODE ARMORED FIBER OPTIC CABLES STRUCTURE

PRODUCT DESIGN

Accept customization,Put Your Good Idea into Reality and Click “Contact Us ”

COMPANY PROFILE

Dongguan HX Fiber Technology Co.,Ltd Located in Dongguan, China. We are a direct manufacturer More than 12 Years experience in producing Armored Optical Cables, Indoor / Outdoor Fiber Optic Cable,FTTH Drop Cable,Connector, Patch Cords, Pigtail, Adapter, PLC Splitter, MPO/MTP Solution The Certifications are ISO 9001:2015 , UL,RoHS, . we own 5 lines for cable production, 87 armoring machines for armored cables. The customers who have cooperated with us: Amphenol Industrial, Rosenberger,YOFC, FiberHome, Foxconn, ZTT. Shipped to USA,Canada,Australia, Belgium, Britain, France, Spain, Italy, Holland, Portugal...... OEM , LOGO Custom are accept

SERVICE & PRODUCTION CAPACITY

FOREIGN EXHIBITIONS

COOPERATIVE BRAND & CERTIFICATION

PAYMENT & TRANSPORTATION METHOD

FAQ

1. Are you the real manufacturer?
Yes. We are the real manufacturer with more than 20 years’ history, welcome to visit us!

2. What is your minimum quantity?
1KM. We support new project of our customers, trial order is available.

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?
Yes, we can customize according to your requirements(logo,package,printing and so on).

5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.

6. Can we trust you?

We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?
At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.

9. What mode of transportation do you support?
Ocean transportation,air transport,Express, etc.
