Brand Name: | HXCOWO |
Model Number: | HX-SW6 |
MOQ: | 1000 meters |
fiyat: | Negotiable |
Packaging Details: | Wooden shaft+Export cardboard box |
TECHNICAL PARAMETERS | ||||
Fiber Cores Number | Diameter (mm) | Weight (kg/km) | ||
2-12 | 10.6 | 124 | ||
14-24 | 12 | 147 | ||
26-36 | 12 | 150 | ||
38-48 | 15 | 207 |
Allowable Tensile Force Long Term/Short Term (N) | Allow Squash Force Long Term/Short Term (N/10mm) | Bending Radius Static/Dynamic (mm) | ||
1000/3000 | 1000/3000 | 10D/20D | ||
PRODUCT FEATURES | ||||
①Has excellent mechanical properties and temperature characteristics | ||||
②The loose tube material itself has good hydrolysis resistance and high strength | ||||
③The tube is filled with special oil paste, providing critical protection for the optical fiber | ||||
④Good compression resistance and softness | ||||

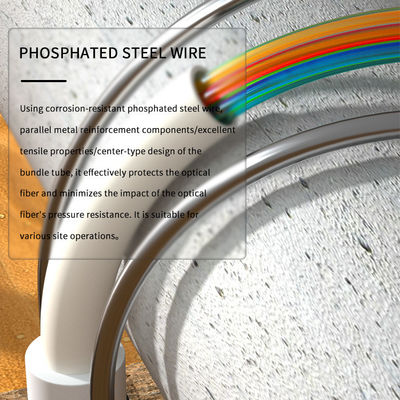

⑤Double sided coated steel strip (PSP) improves the moisture resistance of fiber optic cables | ||||
⑥Two parallel steel wires ensure the tensile strength of fiber optic cables | ||||
⑦Small diameter, light weight, easy to lay | ||||
⑧Long delivery length |
