İçeride, dışarıda zırhlı lifler
>

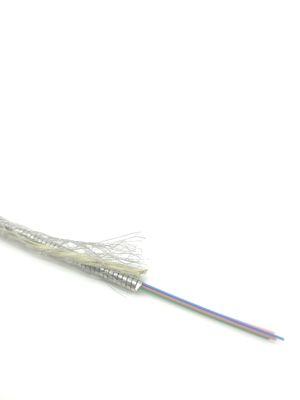

LSZH Jacket 5.0mm OS2 G652D Singlemode Armored Fiber Optic Cable for Networks

LSZH Jacket 5.0mm OS2 G652D Singlemode Armored Fiber Optic Cable for Networks

Brand Name: HXFiber
Model Number: HX-GQJG-22
fiyat: Negotiable
Packaging Details: 1KM/drum or 2KM/drum packaged with wooden
Detail Information
Place of Origin:
Guangdong, China
Türü:
Zırhlı Fiber Optik Kablo, Zırhlı Fiber Optik Kablo
İletken Sayısı:
2
Çekirdek sayısı:
2 ÇEKİRDEK
Elyaf Türü:
OM2 / OM3 / OM4 / G652D / G657A1 / G657A2
Zırhlı Borunun Malzemesi:
Paslanmaz çelik
Dış kılıfın malzemesi:
PVC,LSZH,PU,PE
Çalışma sıcaklığı ((°C):
-20°C~+70°C
Bükülme yarıçapı (Dinamik):
10D
Bükme yarıçapı (Statik):
20D
MOQ:
1km
Teslim tarihi:
3-7 gün
Liman:
Shenzhen
Supply Ability:
1500 Kilometer/Kilometers per Month
High Light:

Singlemode Armored Fiber Optic Cable

,

5.0mm OS2 Armored Fiber Optic Cable

Product Description

LSZH Jacket 5.0mm 2 Cores OS2 G652D Singlemode Armored Fiber Optic Cable for Networks

PrLSZH Jacket 5.0mm 2 Cores OS2 G652D Singlemode Armored Fiber Optic Cable for Networksoducts Description
LSZH Jacket 5.0mm OS2 G652D Singlemode Armored Fiber Optic Cable for Networks 0
Item
Value
Type
Outdoor/Indoor Fiber Optic Cable
Place of Origin
Guangdong CHINA
Brand
OEM
Number of Conductors
≥ 1
Product name
Double Armored fiber optic cable
Application
FTTH , LAN Network, Patch Cord
Fiber
9/125um, 62.5/125um, 50/125um
Cable OD.
3.0mm/4.0mm/5.0mm/6.0mm/7.0mm/8.0mm
HS CODE
8544700000
Armored
Spiral steel armored protected
Mode
Singlemode ,MultiMode
SM / MM
G.652D, G.657A1 or G.657A2 ,OM1,OM2,OM3,OM4
Metal Braiding
Stainless steel
Tensile
Kevlar
Temperature(°C)
-20~+75°C
Cable loss(db/km)
850nm  ≦3.5 ; 1300nm ≦1.5
Tensile(N)
Long Term: 300N ; Short Term : 500N
Bending Radius(mm)
Dynamic 20D,  Static 10D
LSZH Jacket 5.0mm OS2 G652D Singlemode Armored Fiber Optic Cable for Networks 1
LSZH Jacket 5.0mm OS2 G652D Singlemode Armored Fiber Optic Cable for Networks 2
Armored Fiber Optic Cable
Fiber Type:

G.652D, G.657A1 or G.657A2 single mode fiber and OM1, OM2, OM3, OM4 mutimode fiber.

Features:

* Mini diameter SUS spring tube reinforced ensures good crush resistance.
* Kevlar strengthened provide good tensile strength.
* LSZH Outer jacket complies with UL, RoHS

Application:

*Applied to the patch cord of the optical terminal
*Indoor outdoor for FTTH and optical distribution,connection between optical cable and communication equipment room
LSZH Jacket 5.0mm OS2 G652D Singlemode Armored Fiber Optic Cable for Networks 3

1 Core

Armored Fiber Optic Cable,
Anti-Rodent,
Anti-Bending.
LSZH Jacket 5.0mm OS2 G652D Singlemode Armored Fiber Optic Cable for Networks 4

2 Cores

Armored Fiber Optic Cable,
Anti-Rodent,
Anti-Bending.
LSZH Jacket 5.0mm OS2 G652D Singlemode Armored Fiber Optic Cable for Networks 5

4 Cores

Armored Fiber Optic Cable,
Anti-Rodent,
Anti-Bending.

LSZH Jacket 5.0mm OS2 G652D Singlemode Armored Fiber Optic Cable for Networks 6

6 Cores

Armored Fiber Optic Cable,
Anti-Rodent,
Anti-Bending.
LSZH Jacket 5.0mm OS2 G652D Singlemode Armored Fiber Optic Cable for Networks 7

12 Cores

Armored Fiber Optic Cable,
Anti-Rodent,
Anti-Bending.
LSZH Jacket 5.0mm OS2 G652D Singlemode Armored Fiber Optic Cable for Networks 8

Armored Tube

Stainless steel Armored Tube,
