Brand Name: | HXCOWO |
Model Number: | HX-WX1 |
MOQ: | 100 pieces |
fiyat: | Negotiable |
Packaging Details: | OPP bag+Export cardboard box |

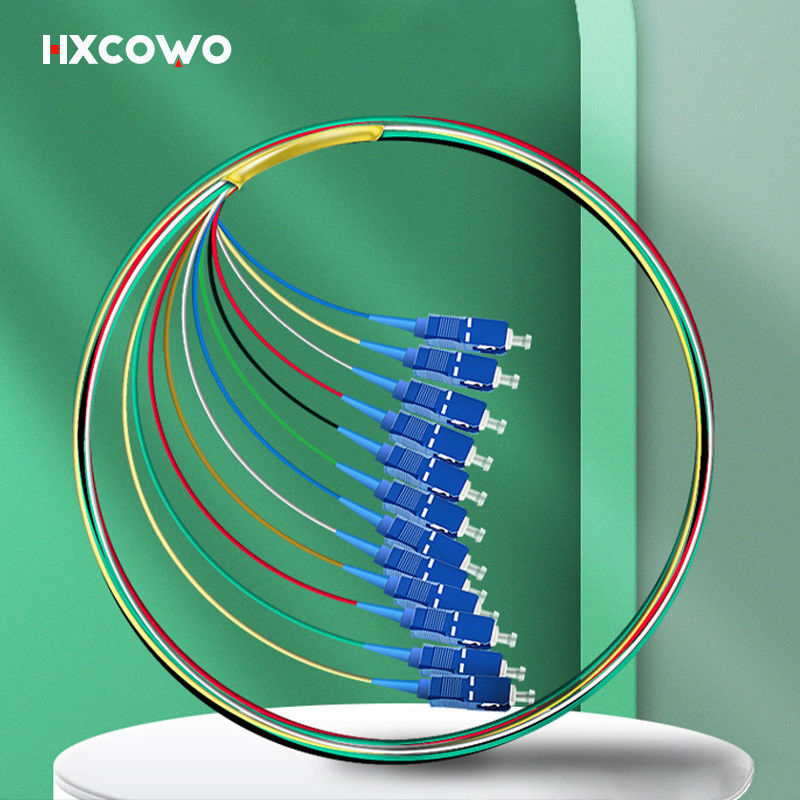

FTTX HXCOWO 12 Color SC UPC Single Mode G657A 0.9mm G652D SM Fiber Optical Pigtail
PRODUCT PARAMETERS
|
|
|
|
|
||||
Insertion loss
|
Singlemode
|
PC≤ 0.3dB
|
UPC≤ 0.2dB
|
APC ≤ 0.18dB
|
||||
|
Multimode
|
PC≤ 0.5dB
|
UPC≤ 0.3dB
|
APC ≤ 0.3dB
|
||||
Return loss
|
Singlemode
|
PC≥ 48dB
|
UPC≥ 50dB
|
APC ≥ 60dB
|
||||
|
Multimode
|
PC≥ 25dB
|
UPC≥ 45dB
|
APC ≥ 50dB
|
||||
Reaptability
|
≤ 0.1db
|
|
|
|
||||
Changeability
|
≤ 0.2dB
|
|
|
|
||||
Working Temperature
|
|
|
|
|
||||
Durability
|
1000 times
|
|
|
|
||||
Sustain Tension
|
≥ 100N
|
|
|
|
||||
Fiber
|
9/125um , 50/125um, 62.5/125um, etc.
|
|
|
|
||||
Diameter
|
0.9mm 2.0mm 3.0mm, etc.
|
|
|
|
||||
Cable Material
|
PVC, LSZH
|
|
|
|
||||
Cores
|
Simplex, Duplex, 4cores, 6cores, 8cores, 12cores, etc
|
|
|
|
