FTTH Fibre Optic Armoured Cable G652D G657A1 24 Core Armoured Fiber Optic Cable

All Category

İçeride, dışarıda zırhlı lifler

FTTH Fibre Optic Armoured Cable G652D G657A1 24 Core Armoured Fiber Optic Cable

Name: FTTH Fibre Optic Armoured Cable G652D G657A1 24 Core Armoured Fiber Optic Cable
Brand: HXCOWO
SKU: HX-SW2
Rating: 4.8 (142 reviews)

Brand Name:	HXCOWO
Model Number:	HX-SW2
MOQ:	50 meters
fiyat:	Negotiable
Packaging Details:	Wooden shaft+Export cardboard box

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Sertifika:

RoHS

Türü:

Açık Hava Fiber Optik Kablo, Açık Hava

İletken Sayısı:

≥ 10

Renk:

Özel Renk

Uygulama:

Telekom İletişimi

Ürün Adı:

Dış Mekan Fiber Optik Kablo

Ceket:

PVC LSZH LSOH PE HDPE

Uzunluk:

Özel Uzunluk

Elyaf Türü:

G652D/G657A1/G657A2

Paket:

Ahşap Davul

Hizmet:

OEM ODM'yi Kabul Et

Liman:

Shenzhen

Supply Ability:

1500000 Piece/Pieces per Month

High Light:

FTTH Fibre Optic Armoured Cable

G652D Fibre Optic Armoured Cable

24 Core Armoured Fiber Optic Cable

Product Description

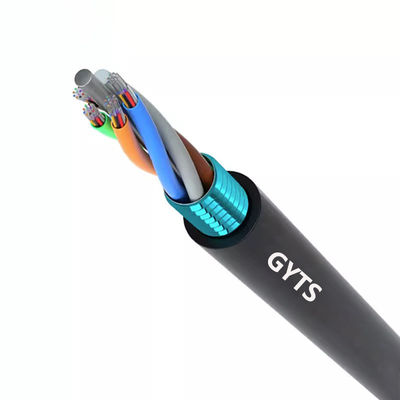

FTTH Stranded Loose Tube GYTS Light Armored Fiber Optic Cable for Network Performance

TECHNICAL PARAMETERS
Core Number	Structure	Outer Diameter (mm)	Weight (kg/km)
2-30	1+5	9.2	88
32-36	1+6	9.6	104
38-60	1+5	9.9	100
62-72	1+6	10.6	127
74-84	1+7	11.5	140
86-96	1+8	12.2	153
98-108	1+9	12.9	169
110-120	1+10	13.6	185
122-132	1+11	14.2	199
134-144	1+12	15.0	218
146-216	1+6+12	14.9	230
218-288	1+9+15	16.9	289

Tensile Force (N)			Flattening Force (N)			Bending Radius (mm)
Long term	Short term	Long term	Short term	Long term	Short term
600	1500	300	1000	10D	20D
Notice	D refers to the diameter of the optical fiber cable
		Corresponding technical parameters can be adjusted according to customer needs
		Water blocking methods can be adjusted according to customer needs
		Specific designs of fiber optic cables such as flame-retardant, rodent-proof and ant-proof can be carried out according to customer needs

PRODUCT DESCRIPTION

OUTDOOR FIBER OPTIC CABLE

A-grade Fiber Core/Quality Assurance

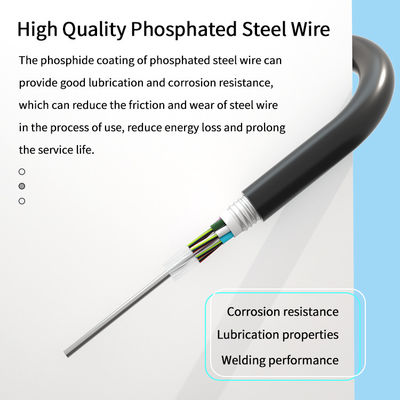

HIGH QUALITY PHOSPHATED STEEL WIRE

The phosphide coating of phosphated steel wire can provide good lubrication and corrosion resistance, which can reduce the friction and wear of steel wire in the process of use, reduce energy loss and prolong the service life.

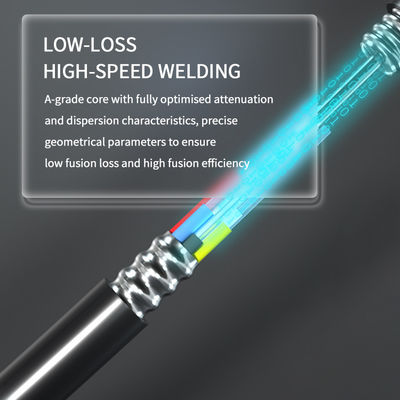

LOW-LOSS, HIGH-SPEED WELDING

A-grade core with fully optimised attenuation and dispersion characteristics, precise geometrical parameters to ensure low fusion loss and high fusion efficiency

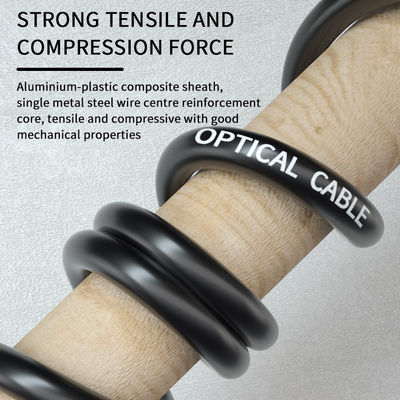

STRONG TENSILE AND COMPRESSION FORCE

Aluminium-plastic composite sheath, single metal steel wire centre reinforcement core, tensile and compressive with good mechanical properties

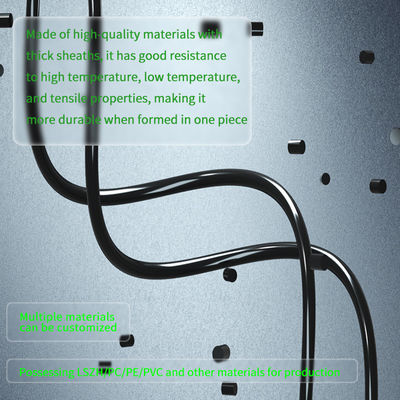

Made of high-quality materials with thick sheaths, it has good resistance to high temperature, low temperature, and tensile properties, making it more durable when formed in one piece

Possessing LSZH/PC/PE/PVC and other materials for production

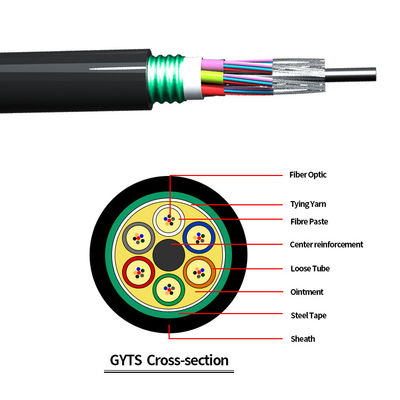

GYTS

GYTS has the same structure as GYTA, except that its sheath is composed of PSP+PE. Compared with GYTA, GYTS has better pressure resistance and is suitable for scenarios where the pressure on the cable side is high.Such as for aerial use and for duct use.

PRODUCT DESIGN

Accept customization,Put Your Good Idea into Reality and Click “Contact Us ”

COMPANY PROFILE

Dongguan HX Fiber Technology Co., Ltd., one of the most outstanding fiber optic cable manufacturers in south China, located next to the sea port of Shenzhen. The company was founded in 2010 with its own brand HXCOWO, dedicated to providing optical fiber cabling system solutions for data centers, enterprise networks, and operators. Annually, there are a bunch of customers visited us from around the world. With over 10 years' development, a registered capital of USD 5 million, a 6,000 sqm workplace, 7 production assemblies were built and about 70 skilled workers were together. Our monthly output can reach up to 1500km fiber optic cables. With the belief of Quality is our culture & Long term business is our goal. So quality is always put to be a first place in our factory. With an excellent management system, we passed ISO9001:2015 certificate in 2021. on Jule 18, 2021, Alibaba group visited us and verified us. We gained the honorary and passed by world-leading inspection company Intertek group. We develop and produce a variety of fiber optical cables and patch cords. with Models such as FTTH, GYXTW, GYFTY, GYTS, GYTA, GYTA53, GYTS53, ADSS, GYTC8S etc. There are many Chinese companies and trading companies purchase fiber cables from us and resale it to the worldwide. Our products are exported to the Europe and America, Asia, South America, Africa etc. Welcome to visit our factory !

SERVICE & PRODUCTION CAPACITY

FOREIGN EXHIBITIONS

COOPERATIVE BRAND & CERTIFICATION

PAYMENT & TRANSPORTATION METHOD

FAQ

1. Are you the real manufacturer?
Yes. We are the real manufacturer with more than 20 years’ history, welcome to visit us!

2. What is your minimum quantity?
1KM. We support new project of our customers, trial order is available.

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?
Yes, we can customize according to your requirements(logo,package,printing and so on).

5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.

6. Can we trust you?

We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?
At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.

9. What mode of transportation do you support?
Ocean transportation,air transport,Express, etc.
