Fiber Optik Yama Kablosu
>

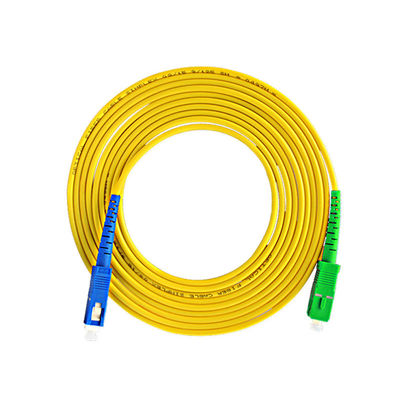

2.0mm 3.0mm Single Mode Fiber Patch Cord SC SC APC UPC Fiber Jumper

2.0mm 3.0mm Single Mode Fiber Patch Cord SC SC APC UPC Fiber Jumper

Brand Name: HXCOWO
Model Number: HX-TX1
MOQ: 100 pieces
fiyat: Negotiable
Packaging Details: OPP bag+Export cardboard box
Detail Information
Place of Origin:
Guangdong, China
Sertifika:
CE/ROHS/ISO9001
Türü:
Fiber Optik Yama Kablosu
Kullanımı:
FTTH
Garanti Süresi:
1 yıl
Ağ:
Kablolu LAN, wifi, 4G, Wiegand
Renk:
Özel Renk
Ürün Adı:
SC'den SC'ye UPC/APC Fiber Patch Cord
Uygulama:
Telekom İletişimi
Ceket:
PVC LSZH LSOH PE HDPE
Uzunluk:
Özel Uzunluk
Elyaf Türü:
G652D/G657A1/G657A2/OM1/OM2/OM3/OM4
Paket:
Normal Poli Poşet
lif sayısı:
1 ÇEKİRDEK
Hizmet:
OEM ODM'yi Kabul Et
Liman:
Shenzhen
Supply Ability:
1500000 Piece/Pieces per Month
High Light:

3.0mm Single Mode Fiber Patch Cord

,

2.0mm Single Mode Fiber Patch Cord

,

single mode fiber optic patch cord

Product Description

Custom Length SC SC APC UPC Fiber Jumper 2.0mm 3.0mm Single Mode Fiber Optic Patchcord

PRODUCT PARAMETERS

Connector model
SC/FC/LC/ST
Storage temperature
-10 ° C+40 ° C
Fiber optic cable structure
Single core/Double core/Bundle shape/Flat strip
Bending radius
15×H (H fiber optic cable diameter)
Fiber optic cable diameter
0.9/2.0/3.0/6.5mm in diameter
Working wavelength
single mode 1310-1550nm/multimode 850nm
Fiber optic cable material
PVC/LSZH
Insertion loss
≤ 0.35dB
Product length
Customizable
Return loss
Single mode UPC ≥ 50dB, APC ≥ 60dB
Ferrule end face structure
UPC/APC
Interchangeability
≤ 0.2dB
Tensile strength
>70N
Number of plugging and unplugging
>1000 times
Fiber type
G652D/G657A1/G657A2/0M1/0M2/0M3/0M4
Working temperature
-25 ℃+70 ℃
Ferrule
Ceramic ferrule
PRODUCT DESCRIPTION
2.0mm 3.0mm Single Mode Fiber Patch Cord SC SC APC UPC Fiber Jumper 0
FIBER PATCHCORD
Qualiffied Fiber, Flame Retardant Material and Low Insertion Loss

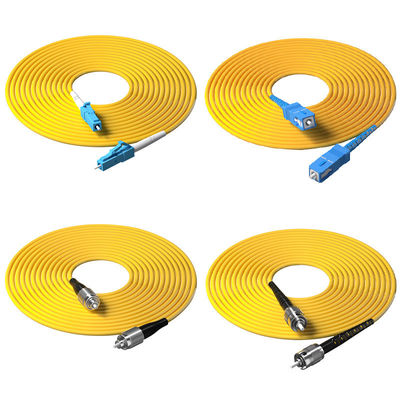

Customized Length and connector Matching( FC/LC/SC/ST
2.0mm 3.0mm Single Mode Fiber Patch Cord SC SC APC UPC Fiber Jumper 1

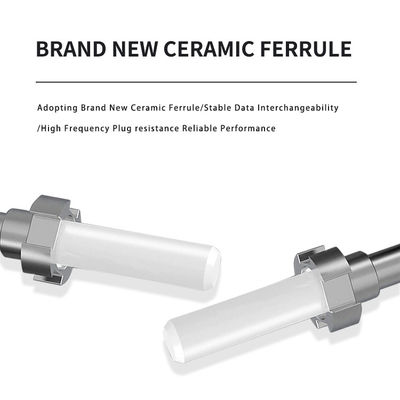

BRAND NEW CERAMIC FERRULE
Adopting Brand New Ceramic Ferrule/Stable Data Interchangeability/High Frequency Plug resistance Reliable Performance
2.0mm 3.0mm Single Mode Fiber Patch Cord SC SC APC UPC Fiber Jumper 2
SUPER COMPRESSION AND TENSION RESISTANCE
Strict Testing Procedure

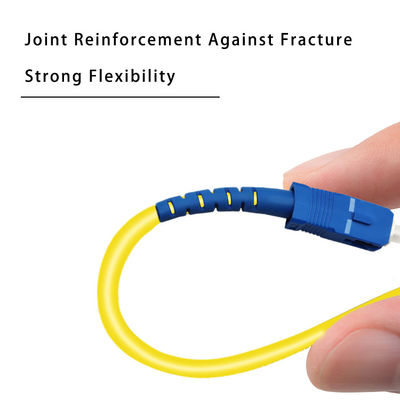

JOINT REINFORCEMENT AGAINST FRACTURE
Strong Flexibility
2.0mm 3.0mm Single Mode Fiber Patch Cord SC SC APC UPC Fiber Jumper 3

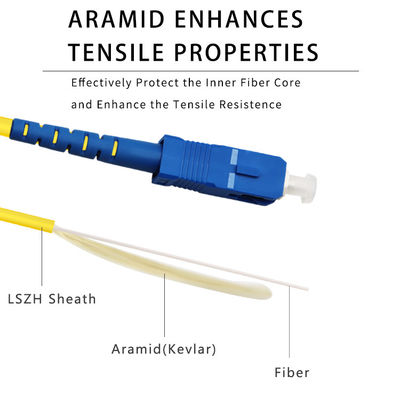

ARAMID ENHANCES TENSILE PROPERTIES
Effectively Protect the Inner Fiber Core and Enhance the Tensile Resistence
2.0mm 3.0mm Single Mode Fiber Patch Cord SC SC APC UPC Fiber Jumper 4
FLAME RETARDANT ENVIRONMENTAL PROTECTION ORIGINAL MATERIALS
Brand new PVC/LSZH/PE Materials Strong Tensile and Drag Resistance Low Carbon Non-toxic Safe Using
2.0mm 3.0mm Single Mode Fiber Patch Cord SC SC APC UPC Fiber Jumper 5
LOW INSERTION LOSS AND HIGH-SPEED STABILITY
Strict Testing Procedure High Reliability, Excellent Stability, Low light loss and High-speed Stable Transmission
2.0mm 3.0mm Single Mode Fiber Patch Cord SC SC APC UPC Fiber Jumper 6

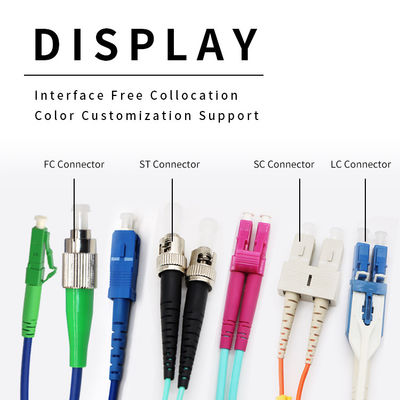

DISPLAY
Interface Free Collocation Color Customization Support

2.0mm 3.0mm Single Mode Fiber Patch Cord SC SC APC UPC Fiber Jumper 7
PRODUCT DESIGN
2.0mm 3.0mm Single Mode Fiber Patch Cord SC SC APC UPC Fiber Jumper 8
Accept customization,Put Your Good Idea into Reality and Click “Contact Us ”
2.0mm 3.0mm Single Mode Fiber Patch Cord SC SC APC UPC Fiber Jumper 9
COMPANY PROFILE

2.0mm 3.0mm Single Mode Fiber Patch Cord SC SC APC UPC Fiber Jumper 10
Dongguan HX Fiber Technology Co., Ltd., one of the most outstanding fiber optic cable manufacturers in south China, located next to the sea port of Shenzhen. The company was founded in 2010 with its own brand HXCOWO, dedicated to providing optical fiber cabling system solutions for data centers, enterprise networks, and operators. Annually, there are a bunch of customers visited us from around the world. With over 10 years' development, a registered capital of USD 5 million, a 6,000 sqm workplace, 7 production assemblies were built and about 70 skilled workers were together. Our monthly output can reach up to 1500km fiber optic cables.
With the belief of Quality is our culture & Long term business is our goal. So quality is always put to be a first place in our factory. With an excellent management system, we passed ISO9001:2015 certificate in 2021. on Jule 18, 2021, Alibaba group visited us and verified us. We gained the honorary and passed by world-leading inspection company Intertek group. We develop and produce a variety of fiber optical cables and patch cords. with Models such as FTTH, GYXTW, GYFTY, GYTS, GYTA, GYTA53, GYTS53, ADSS, GYTC8S etc. There are many Chinese companies and trading companies purchase fiber cables from us and resale it to the worldwide. Our products are exported to the Europe and America, Asia, South America, Africa etc. Welcome to visit our factory !
SERVICE & PRODUCTION CAPACITY
2.0mm 3.0mm Single Mode Fiber Patch Cord SC SC APC UPC Fiber Jumper 11
FOREIGN EXHIBITIONS
2.0mm 3.0mm Single Mode Fiber Patch Cord SC SC APC UPC Fiber Jumper 12
COOPERATIVE BRAND & CERTIFICATION
2.0mm 3.0mm Single Mode Fiber Patch Cord SC SC APC UPC Fiber Jumper 13
PAYMENT & TRANSPORTATION METHOD
2.0mm 3.0mm Single Mode Fiber Patch Cord SC SC APC UPC Fiber Jumper 14
FAQ
1. Are you the real manufacturer?
Yes.  We are the real manufacturer  with more than 20 years’ history, welcome to visit us!

2. What is your minimum quantity?
1KM. We support new project of our customers, trial order is available.

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?
Yes, we can customize according to your requirements(logo,package,printing and so on).

5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.

6. Can we trust you?
We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?
At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.

9. What mode of transportation do you support?
Ocean transportation,air transport,Express, etc.
