| Brand Name: | HXFiber |
| Model Number: | HX-Patch Cord-32 |
| fiyat: | Negotiable |
| Packaging Details: | paper box |

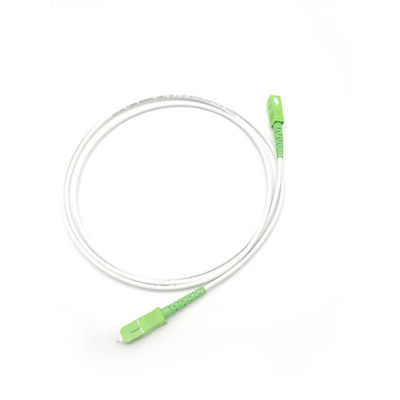

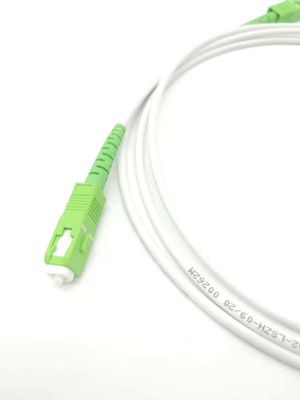

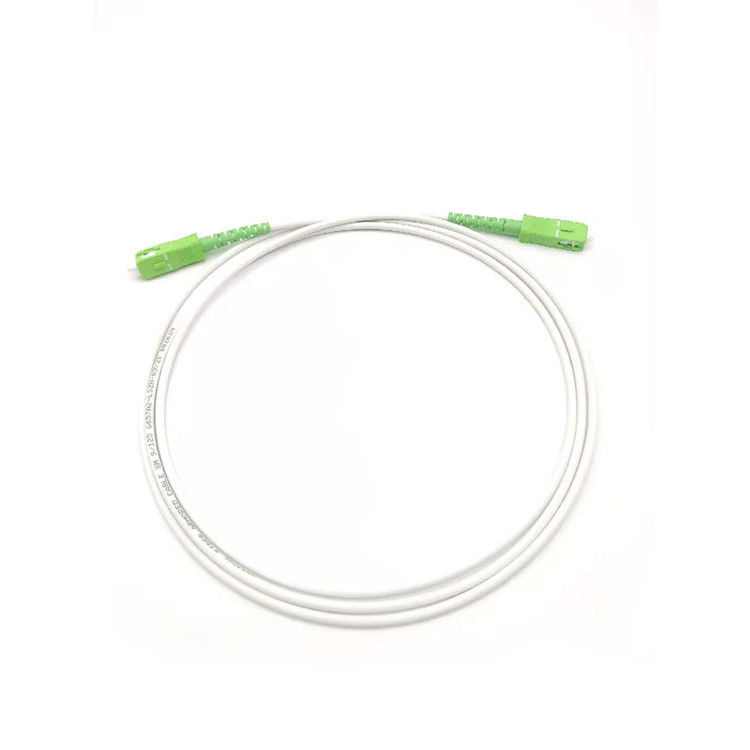

Armored Optic Fiber Patch Cord SC/APC to SC/APC SM 9 1F G657A 3.0mm LSZH White for FTTH
|
Connector Type
|
SC to SC
|
Jacket OD
|
3.0mm
|
|
Fiber Mode
|
9/125μm
|
Jacket Color
|
White
|
|
Polish Type
|
APC to APC
|
Wavelength
|
1310/1550nm
|
|
Fiber Count
|
Simplex
|
Jacket Material
|
PVC/LSZH
|
|
Insertion loss
|
≤0.3dB
|
Interchangeability
|
≤0.2dB
|
|
Return loss
|
≥55dB
|
Vibration
|
≤0.2dB
|
|
Operating temperature
|
-40~75°C
|
Storage temperature
|
-45~85°C
|
|
Length
|
2/5/10/15/20m/100m customized length
|
delivery date
|
3-7days according the quantity
|
|
|
