GYFTA53 Outdoor Armored Fiber Optic Cable with Wooden Drum Packaging OEM ODM Service and Low Loss High-Speed Fusion Welding

Tüm Kategori

İçeride, dışarıda zırhlı lifler

fiber optik modül

Bizimle İletişim

sales@hxfiber.com

Şimdi iletişime geçin

GYFTA53 Outdoor Armored Fiber Optic Cable with Wooden Drum Packaging OEM ODM Service and Low Loss High-Speed Fusion Welding

Marka Adı:	HXCOWO
Model Numarası:	HX-SW5
Adedi:	50

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Guangdong, Çin

Sertifika:

Fiber Çekirdek Numarası:

2-288 Çekirdekler

13,9-20,2 mm

Ağırlık:

202-281kg/km

Gerilme kuvveti:

1000/3000K

İzin verilen baskı:

1000/3000 N/100mm

Fiber tipi:

G652D/G657A1/G657A2

Çalışma sıcaklığı:

-40 ℃ -70 ℃

Koyma yöntemi:

Doğrudan gömülme

Kılıf malzemesi:

PE/PVC/LSZH/PC

Kablo tipi:

Açık Hava Zırhlı

Ceket malzemesi:

PVC LSZH LSOH PE HDPE

İletken sayısı:

Paket türü:

Ahşap davul

Gerilme mukavemeti:

1000-3000N

Hizmet ömrü:

Vurgulamak:

Wooden Drum Packaging Outdoor Armored Fiber Optic Cable

OEM ODM Service GYFTA53 Fiber Cable

Low Loss High-Speed Fusion Welding Armored Fiber Optic Cable

Ürün Tanımı

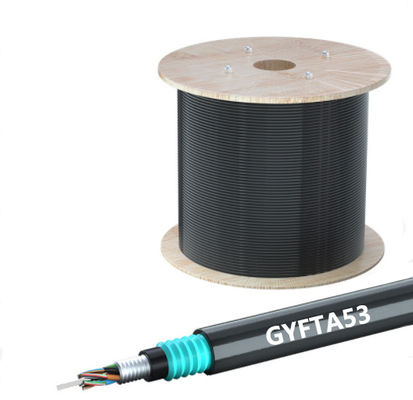

GYFTA53 Outdoor Armored Fiber Optic Cable

High-quality single-mode outdoor double armored fiber optic cables designed for long-distance communication and inter-office applications.

Technical Parameters

Fiber Core Number	Diameter (mm)	Weight (kg/km)
2-36	13.9	202
38-72	15.1	241
74-96	17.1	290
98-120	18.6	333
122-144	20.2	281

Allowable Tensile Force (N)	Allowable Pressure (N/100mm)
1000 (Long Term) 3000 (Short Term)	1000 (Long Term) 3000 (Short Term)

Fiber Type: G652D

Laying Method: Direct burial

Operating Temperature: -40℃ to +70℃

Application: Suitable for long-distance communication and inter-office communication

Key Features

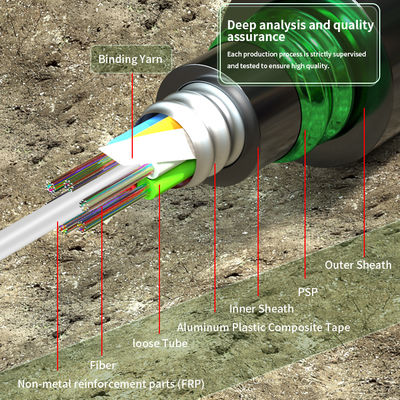

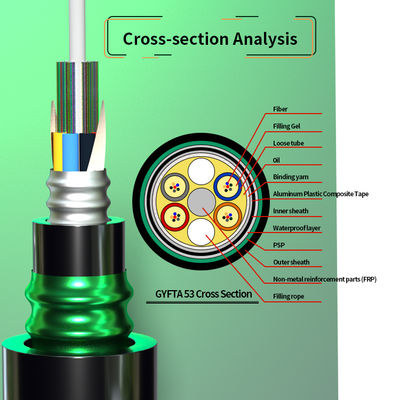

Double Armored Protection: Designed for underground laying, outdoor overhead, and indoor trunking applications

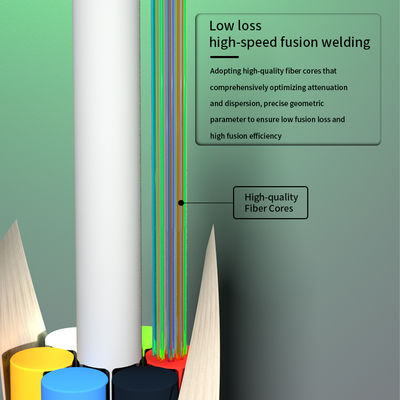

Low Loss, High-Speed Fusion Welding: High-quality fiber cores with optimized attenuation and dispersion

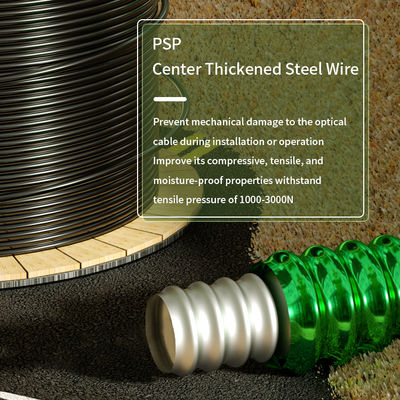

Center Thickened Steel Wire: Prevents mechanical damage and improves compressive, tensile, and moisture-proof properties

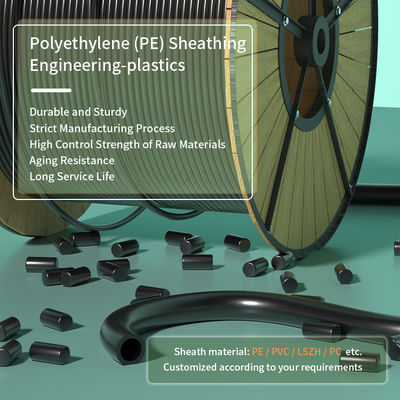

Durable PE Sheathing: Made from engineering plastics with strict manufacturing process for long service life
Clear Meter Markers: Convenient and fast construction wiring with visible meter markings

Customization Options

We accept customized specifications including sheath materials (PE/PVC/LSZH/PC) and other requirements.

Company Profile

Dongguan HX Fiber Technology Co., Ltd. is a leading fiber optic cable manufacturer in South China, established in 2010 with the brand HXCOWO. We specialize in optical fiber cabling solutions for data centers, enterprise networks, and operators.

Quality Assurance

ISO9001:2015 certified
6,000 sqm workplace with 7 production assemblies
Monthly output capacity of 1500km fiber optic cables
Products exported worldwide to Europe, America, Asia, South America, and Africa

Frequently Asked Questions

1. Are you the real manufacturer?

Yes. We are the real manufacturer with more than 20 years' history, welcome to visit us!

2. What is your minimum quantity?

1KM. We support new project of our customers, trial order is available.

3. Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?

Yes, we can customize according to your requirements (logo, package, printing and so on).

5. How long will it take you to deliver?

Our usual delivery date takes 15 to 20 days.
