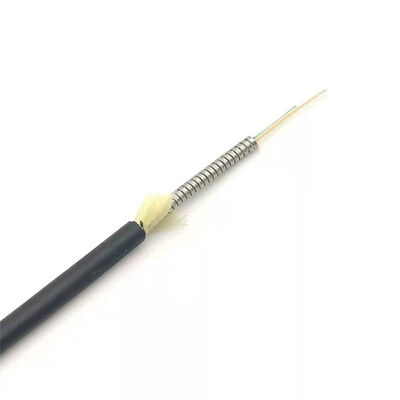

Armored Fiber Optic Cable with Anti-Rodent Anti-Bending and Crush Resistance for Indoor Outdoor Use

Armored Fiber Optic Cable with Anti-Rodent Anti-Bending and Crush Resistance for Indoor Outdoor Use

Marka Adı: HXFiber
Model Numarası: HX-GQJG-08
Adedi: Standart
fiyat: CN¥0.4825-0.6203
Ayrıntılı Bilgiler
Menşe yeri:
Guangdong, Çin
İletken Sayısı:
≥ 10
Çekirdek Sayısı:
1-24 Çekirdek
Elyaf Tipi:
OM2 / OM3 / OM4 / G652D / G657A1 / G657A2
Zırhlı tüp malzemesi:
Paslanmaz çelik
Dış kılıf malzemesi:
PVC, LSZH, TPU, PE
Çalışma Sıcaklığı:
-20°C~+70°C
Dinamik Bükme Yarıçapı:
20D
Statik Bükme Yarıçapı:
10D
Kablo od:
3,0 mm/4,0 mm/5,0 mm
Kablo kaybı:
1310 nm ≦0,35; 1550 nm ≦0,25
Uzun Süreli Çekme:
300n
Kısa Süreli Çekme:
500n
Fiber Modu:
Tekli mod, Çok modlu
Metal Örgü:
Paslanmaz çelik
Çekici malzeme:
Kevlar
Vurgulamak:

Anti-Rodent Armored Fiber Optic Cable

,

Anti-Bending Armored Fiber Cable

,

Crush Resistance Fiber Optic Cable

Ürün Tanımı
Armored Anti-Rodent Anti-Bending Crush Resistance Fiber Optic Cable
Armored Fiber Optic Cable with Anti-Rodent Anti-Bending and Crush Resistance for Indoor Outdoor Use 0 Armored Fiber Optic Cable with Anti-Rodent Anti-Bending and Crush Resistance for Indoor Outdoor Use 1
Product Specifications
Item Value
Type Outdoor/Indoor Fiber Optic Cable
Place of Origin Guangdong CHINA
Brand OEM
Number of Conductors ≥ 1
Product Name Steel Armored Fiber Optic Cable
Application FTTH, LAN, Data Center, CATV
Fiber 9/125um, 62.5/125um, 50/125um
Cable OD 3.0mm/4.0mm/5.0mm
HS CODE 8544700000
Armored Spiral steel armored protected
Mode Singlemode, MultiMode
SM / MM G.652D, G.657A1 or G.657A2, OM1, OM2, OM3, OM4, OM5
Metal Braiding Stainless steel
Tensile Kevlar
Temperature (°C) -20~+75°C
Cable loss (db/km) 1310nm ≦0.35; 1550nm ≦0.25
Tensile (N) Long Term: 300N; Short Term: 500N
Bending Radius (mm) Dynamic 20D, Static 10D
Armored Fiber Optic Cable with Anti-Rodent Anti-Bending and Crush Resistance for Indoor Outdoor Use 2 Armored Fiber Optic Cable with Anti-Rodent Anti-Bending and Crush Resistance for Indoor Outdoor Use 3 Armored Fiber Optic Cable with Anti-Rodent Anti-Bending and Crush Resistance for Indoor Outdoor Use 4 Armored Fiber Optic Cable with Anti-Rodent Anti-Bending and Crush Resistance for Indoor Outdoor Use 5

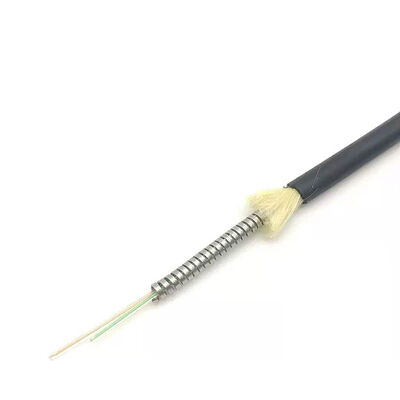

Armored Fiber Optic Cable Features
Fiber Type: G.652D, G.657A1 or G.657A2 single mode fiber and OM1, OM2, OM3, OM4 multimode fiber.
  • Mini diameter SUS spring tube reinforced ensures good crush resistance
  • Kevlar strengthened provide good tensile strength
  • Outer jacket complies with UL, RoHS standards
Armored Fiber Optic Cable with Anti-Rodent Anti-Bending and Crush Resistance for Indoor Outdoor Use 6 Armored Fiber Optic Cable with Anti-Rodent Anti-Bending and Crush Resistance for Indoor Outdoor Use 7
Available Core Configurations
1 Core - Armored Fiber Optic Cable, Anti-Rodent, Anti-Bending
Armored Fiber Optic Cable with Anti-Rodent Anti-Bending and Crush Resistance for Indoor Outdoor Use 8 Armored Fiber Optic Cable with Anti-Rodent Anti-Bending and Crush Resistance for Indoor Outdoor Use 9
2 Cores - Armored Fiber Optic Cable, Anti-Rodent, Anti-Bending
Armored Fiber Optic Cable with Anti-Rodent Anti-Bending and Crush Resistance for Indoor Outdoor Use 10 Armored Fiber Optic Cable with Anti-Rodent Anti-Bending and Crush Resistance for Indoor Outdoor Use 11
4 Cores - Armored Fiber Optic Cable, Anti-Rodent, Anti-Bending
Armored Fiber Optic Cable with Anti-Rodent Anti-Bending and Crush Resistance for Indoor Outdoor Use 12 Armored Fiber Optic Cable with Anti-Rodent Anti-Bending and Crush Resistance for Indoor Outdoor Use 13
6 Cores - Armored Fiber Optic Cable, Anti-Rodent, Anti-Bending
Armored Fiber Optic Cable with Anti-Rodent Anti-Bending and Crush Resistance for Indoor Outdoor Use 14 Armored Fiber Optic Cable with Anti-Rodent Anti-Bending and Crush Resistance for Indoor Outdoor Use 15
12 Cores - Armored Fiber Optic Cable, Anti-Rodent, Anti-Bending
Armored Fiber Optic Cable with Anti-Rodent Anti-Bending and Crush Resistance for Indoor Outdoor Use 16 Armored Fiber Optic Cable with Anti-Rodent Anti-Bending and Crush Resistance for Indoor Outdoor Use 17

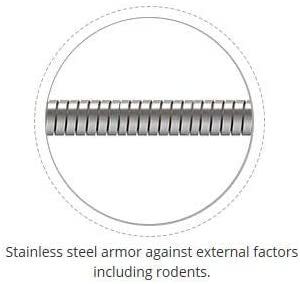

Stainless Steel Armored Tube
Armored Fiber Optic Cable with Anti-Rodent Anti-Bending and Crush Resistance for Indoor Outdoor Use 18 Armored Fiber Optic Cable with Anti-Rodent Anti-Bending and Crush Resistance for Indoor Outdoor Use 19 Armored Fiber Optic Cable with Anti-Rodent Anti-Bending and Crush Resistance for Indoor Outdoor Use 20 Armored Fiber Optic Cable with Anti-Rodent Anti-Bending and Crush Resistance for Indoor Outdoor Use 21
Additional Products
Company Overview
Armored Fiber Optic Cable with Anti-Rodent Anti-Bending and Crush Resistance for Indoor Outdoor Use 60 Armored Fiber Optic Cable with Anti-Rodent Anti-Bending and Crush Resistance for Indoor Outdoor Use 61
Industry Exhibitions
Armored Fiber Optic Cable with Anti-Rodent Anti-Bending and Crush Resistance for Indoor Outdoor Use 62 Armored Fiber Optic Cable with Anti-Rodent Anti-Bending and Crush Resistance for Indoor Outdoor Use 63
Business Cooperation
Armored Fiber Optic Cable with Anti-Rodent Anti-Bending and Crush Resistance for Indoor Outdoor Use 64 Armored Fiber Optic Cable with Anti-Rodent Anti-Bending and Crush Resistance for Indoor Outdoor Use 65
Quality Certifications
Armored Fiber Optic Cable with Anti-Rodent Anti-Bending and Crush Resistance for Indoor Outdoor Use 66 Armored Fiber Optic Cable with Anti-Rodent Anti-Bending and Crush Resistance for Indoor Outdoor Use 67
Production Line & Manufacturing

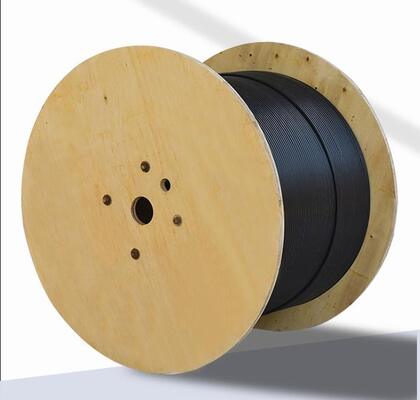

Packaging & Shipping
